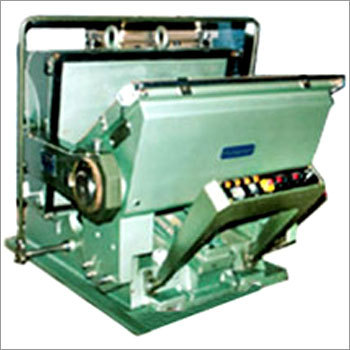

Automatic Platen Punching Machine

Automatic Platen Punching Machine
Automatic Platen Punching Machine
Product Code : PPM 17
Brand Name : K. K. GRAPHICS
Trade Information
  • Main Domestic Market
  • South India, Tamil Nadu
Product Description
We are widely known for supplying a wide range of Automatic Platen Punching Machine. The offered machine is specially designed for creasing and embossing on paper, die cutting,  plastic and P.V.C. Materials, corrugated board, cardboard, leather, etc. The main driving shaft is equipped with two sets-of double helical self-lubricated and main electrical panels are equipped with international standardized components like Siemens / L & T / T .C. etc. We make sure all the products are reliable, maintenance free and  simple. Automatic Platen Punching Machine are available at pocket-friendly budget.

Features :
  • All parts are interchangeable
  • All shafts are from EN - 8 / 9 alloy steel and pins are grounded
  • Automatic centralized lubrication system
  • Bearings are of SKF / NBC only
  • Best quality paint and powder coated fittings
  • Bushes are from Phosphorous Bronze Metal
  • Electromagnetic clutch & brake system is adjustable
  • Quick and simple adjustment
  • Silent running

Technical Specification :

Size inside Chase

51 x 66 cm
20 x 26 in

51 x 76 cm
20 x 30 in

56 x 82 cm
22 x 32 in

64 x 94 cm
25 x 37 in

81 x 107 cm
32 x 42 in

91 x 130 cm
36 x 51 in

107 x 158 cm
42 x 62 in

132 x 189 cm
52 x 72 in

Platen Size

56 x 71 cm
23 x 29 in

56 x 81 cm
22 x 32 in

61 x 86 cm
25 x 35 in

71 x 101 cm
28 x 40 in

89 x 114 cm
35 x 45 in

99 x 137 cm
39 x 54 in

114 x 165 cm
45 x 65 in

142 x 193 cm
56 x 76 in

H.P Reqd

3 H.P

3 H.P

3 H.P

5 H.P

7.5 H.P

10 H.P

10 H.P

12.5 H.P

Imp.per hr.

1800

1800

1700

1500

1300

1100

1000

800

Wt.apprx

2.6 Ton

2.8 Ton

3.4 Ton

4 Ton

5.4 Ton

6.5 Ton

9.5 Ton

13.5 Ton

Area Reqd.

188 x 150 x 157 cm
74 x 59 x 62 in

188 x 155 x 157 cm
74 x 61 x 62 in

188 x 167 x 147 cm
74 x 66 x 58 in

198 x 180 x 152 cm
78 x 71 x 60 in

223 x 198 x 167 cm
88 x 78 x 66 in

228 x 208 x 180 cm
90 x 82 x 71 in

241 x 241 x 203 cm
95 x 95 x 80 in

267 x 267 x 218 cm
105 x 105 x 86 in
