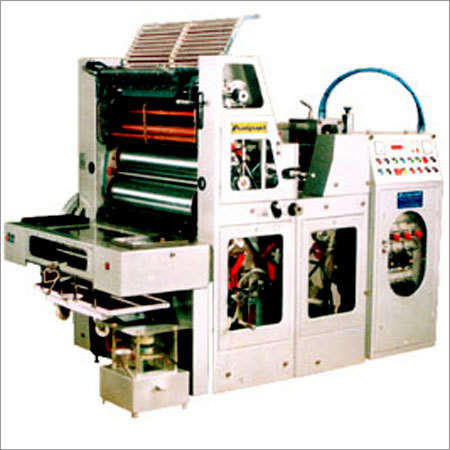

Sheet Fed Offset Printing Machine

Sheet Fed Offset Printing Machine
Sheet Fed Offset Printing Machine
Product Code : OPM 20
Brand Name : K. K. GRAPHICS
Product Description
We are engaged in offering a wide range of Sheet Fed Offset Printing Machine. All the products are manufactured by using latest techniques and top grade material. For the satisfaction of our valued clients, all the products are tested under the supervision of quality controllers. We assure you that all the machines are highly  perfect finish, high standard, and maximum efficiency. All the clients can avail the benefit of Sheet Fed Offset Printing Machine at very reasonable cost.

Special Features :
  • Automatic Centralized lubrication with timer
  • Automatic Impression ON/OFF System
  • Electronic Digital Copy Counter
  • Foot Board
  • Hardened ground gears
  • Instant D.C. Brake System
  • Motorized Dampening system
  • Motorized feeder pile table
  • One lubrication hand pump extra
  • Photocell & Double Sheet detector
  • Powder Spray unit
  • Roller safety guard both sides
  • Rotary Cam Stream Feeder
  • Special Oil filter with vacuum pump
  • Varnish Printing facility
  • Warning Bell System

Technical Specification :

Models

16 x 21

18 x 25

18 x 28

20 x 30

22 x 32

24 x 37

Paper Size (Max.)

16 x 21

18 x 25

18 x 28

20 x 30

22 x 32

24 x 37

Paper Size (Min)

5 x 8

9 x 11

9 x 11

12 x 14

12 x 14

14 x 18

Printing Area

15.5x21

17.5x25

17.5x28

19.5x30

21x31

23 x 36

Plate Size(0.42mm)

18x21

20x26

20 x 29

22 x 31

24x 33

26 x 38

Blanket Size(1.9mm)

21x22

22x26

22x29

24x31

26x32

28 x 38

Feeder Pile Height

29

30

30

33

35

36

Delivery Pile Height

14

15

15

17

18

20

Paper Thickness Range

30 - 400 gsm

30 - 400 gsm

30 - 400 gsm

30 - 400 gsm

30 - 400 gsm

30 - 400 gsm

No.of Ink Roller

20

20

20

20

20

20

No.of Dampening Rollers

5

5

5

5

5

5

No.of Ink Form Rollers

3

3

3

3

3

3

Diameter of Ink Form Rollers

58 ,63 & 70 mm

58 ,63 & 70 mm

58 ,63 & 70 mm

58 ,63 & 70 mm

58 ,63 & 70 mm

58, 63 & 70 mm

Maximum Running Speed

8000 IPH

8000 IPH

8000 IPH

8000 IPH

8000 IPH

8000 IPH

Floor Space

70 x 50

76 x 50

76 x 53

84 x 56

89 x 57

95 x 62

Gross Weight(Approx.)

1900 Kg

2300 Kg

2500 Kg

2800 Kg

3300 Kg

4000 Kg

Power Required

2+2 HP

3+2 HP

3+2 HP

3+2 HP

5+3 HP

5+3 HP

Gripper Bite

5- 8 mm

5 - 8 mm

5 - 8 mm

5 - 8 mm

5 - 8 mm

5 - 8 mm

Gripper Margin

9 mm

9 mm

9 mm

9 mm

9 mm

9 mm
